stepper motor | what is stepper motor

stepper motor is type of special machine that completes their rotation in stepwise . In other word stepper motor is the electromagnetical device that converts the electrical power into mechanical power. Controller circuits are used to operate the stepper motor when number of pulses fed into the controller than controller circuit decides the rotation of motor.

Construction of stepper motor

stepper motor consist with two important part that is stator and rotor like other electric motors

Stator core : Here it is stator core that have circular shape it can be also rectangular shape according to application we can design. Stator core is made up of laminated Silicon steel we use this material due to their high permeability that supports the magnetic field lines. Lamination is the arrangement of theen sheets that combined together to make a stator, each sheet have diameter of 0.33 mm.

We provide lamination to reduce Eddy current loss. Poles are present at the inner portion of stator winding that is made up of copper. We use copper material due to their good electrical conductivity. Stator pole can be different like 4-pole , 8-pole .. etc according to application.

Stator frame : Frame protects the stator core and main parts of the stepper motor from mechanical damage and frame is made up of cast iron that provide mechanical support to the internal assembly and important part of the machine.

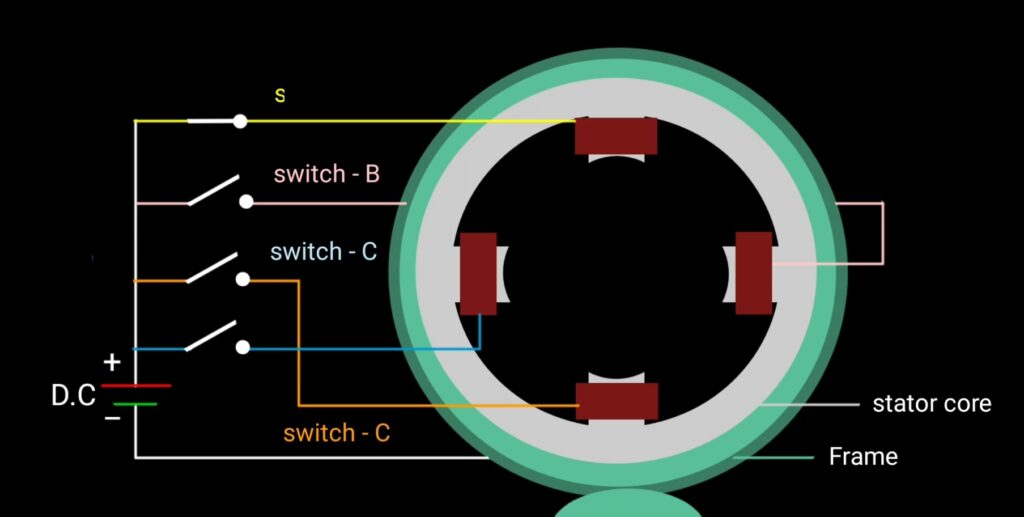

as you can see in above diagram how do we make connection of stepper motor, each stator phase innergize separately by using separate switches

permanent magnet rotor is used in stepper motor due to absence of brushes and commutator like bldc motor so we use permanent magnet

We select that type of magnetic material for making rotor which have more flux density to achieve maximum torque so generally we use ferromagnetic material like Iron , Nickel , Cobalt etc that provide required torque. In above diagram I have considered two pole rotor it can be more according to application.

Working principle of stepper motor

first of all we give DC supply to the stepper motor. Suppose in starting switch-A is (ON) and another switches remain (OFF).

so current will flow only from switch-A. Due to the DC nature of current constant magnetic polarity produces on coil-A suppose (s-pole) develops on stator coil-A that will attract opposite polarity (n-pole) of the rotor and rotor align towards stator coil-A. Just like switch-A another switches will conduct one by one and another switches will be off , rotor will follow energize coil step wise. When switch-D will conduct conduct then another switches will be off

Opposite polarity of coil-D and rotor pole will attract to each other as a result rotor will align towards coil-D.

Thus when all phases innergize separately and rotor follows the energize phase and rotates step wise. In arrangement of four pole stator rotor is completing one revolution in 4-step , to complete one resolution in 8-step energize two pages together.

when coil-A and coil-B energize together then both S-Pole attracts the rotor N-pole with same force then rotor rotates at 45° angle

in this case rotor is completing one step with 45° so it will complete one revolution in 8-step. And if you want to rotate the rotor of stepper motor in anticlockwise direction then first coil-D will energize then coil-C then coil-B and then coil-A will energize, rotor will follow the energize Pole and it will rotate in anticlockwise direction.

Notes :

since manually it is not possible to operate these switches that used in stepper motor
so to innersize the different phases separately motor driver is used that supplies the voltage in required amount
motor driver innersize the next phase according to rotor position and rotor follows the energize phase.
Speed of a stepper motor controls electronically where controller is also include.

Step angle

step angle is the basic movement of stepper motor That depends upon number of poles in stepper motor. That is given by the equation..

[Ns – Nr/Ns × Nr] × 360

Ns – number of stator poles
Nr – number of rotor poles

suppose if we have stepper motor with ( Ns = 4 , Nr = 2 ) then what is value of step angle .

[4 – 2/4 × 2] × 360 = 2/8×360 = 90° is the step angle.

Applications

stepper motors are used in 3D printers where it is crucial for controlling the movement of the print head and precise layer deposition so at that application we use stepper motor.
this type of Motors are used in CMS machines where it provide precise control for the cutting tools and different designs.
they are used in robotics where we make different part of Robotics like Robotics arm and other robotic systems for rotation and movement.
this type of motors are used in medical equipments like blood analyzer and imaging equipment for their precise control of fluid movement.
These motors are used in Industrial Automation for production of machinery material handling and other industrial application where accurate positioning is required.
stepper motors are used in ATM machine where it operates the dispensing mechanism.

Advantages

stepper motor provides precise positioning and repeatability
this type of motor provides excellent low speed torque, during low speed it provides better torque make them suitable for high starting torque applications.
we can easily integrate the stepper motor in control system using simple digital pulse sequence.
due to absence of commutator and carbon brushes , increases the life of a stepper motor or we can say it has high reliability.
simple design of stepper motor required less maintenance becouse carbon brushes and commutator are not present.

Disadvantages

they are less efficient then other type of related motors like Servo motor, torque decreases rapidly when speed is increases.
if we compare with Servo Motor it have lower level of accuracy.
when stepper motor rotates at high speed it produces noise and vibrations due to stepping action.
stepper Motors can consume more current than DC Motors that reduces the overall efficiency.
